Aspire
Bluetooth lock

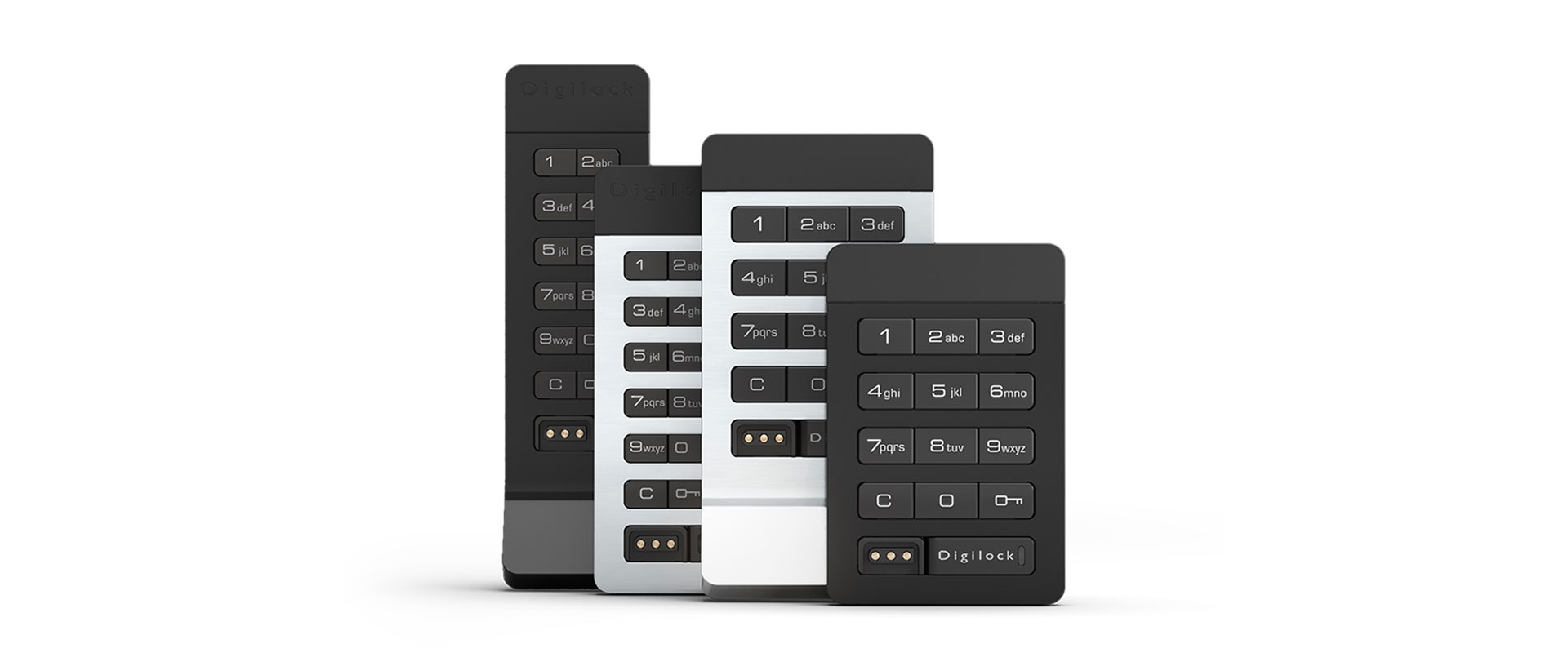

The Digilock Aspire Keypad BLE is a battery-powered Bluetooth locker lock designed for shared-use and dedicated-use locker environments. Commonly specified across workplace, education, end-of-trip and public-use facilities, it supports both PIN code and mobile credential access, making it well suited to projects requiring flexible user access, streamlined locker management and integrated hardware solutions. Available in wide and narrow body configurations to suit different locker designs and project requirements.
Specification summary
| Type | Battery powered |
| Function | Bluetooth (BLE) or Code |
| Mode | Dedicated or shared-use locker environments |
| Accessibility | Integrated handle option for accessibility |
| Fitting | Left & right-handed, vertical & horizontal |
| Management | Electronic key management system, override capability for access |
| Auto lock | Yes (countdown from 1-99 hours) |
| Lock mechanism | Motorised deadbolt or deadlatch |
| Material | Metal |
| Finishes | Matte black and brushed nickel finishes |
| Water resistance | IP55-rated for wet and dry areas |
| Battery life | 180,000 cycles (3-5 years approx) |
| Battery type | 4 x AA batteries (included) |
| Retrofittable | Yes |
| Manufacturer warranty | 2 years |
| Manufacturer | Digilock |
Lock features
Operation:
- Programmable in shared or fixed mode
- Wireless connectivity through BLE
- Shared use mode – access with either one-off mobile credential or any 4-7-digit code to lock
- Fixed use mode – access with either assigned mobile credential or enters assigned code
- Programmable auto-unlock timer (1–99 hours)
- Visual and audible lock status indicators
- Deadlatch or deadbolt lock mechanism options
- Option of Cable or Pin for rear unit connection
Management:
- Assign up to 6 manager credentials per system
- Supports multiple authorised user credentials per lock
- Management override access
- Electronic management keys provide emergency power and override access
- Advanced Tablet Management System upgrade available
Durability:
- IP55-rated for dust and water resistance
- Battery life: 3-5 yrs, 180,000 cycles with 4 AA batteries
- Manufacturer warranty: 2 years
Dimensions
| SKU | Narrow | Wide |
| Height | 101 | 82 |
| Height w. handle | 126 | 108 |
| Width | 35 | 54 |
| Depth (excl handle) | 9 | 9 |
| Door thickness | 1-30 | 1-30 |
Retrofit & project integration
These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
