XLock 100 BLE
RFID lock
The XLOCK100 is a battery-powered Bluetooth locker lock designed for dedicated-use and shared-use locker environments. Commonly specified across workplace, education, end-of-trip and public-use facilities, it supports mobile app and RFID credential access, making it well suited to projects requiring flexible locker administration, connected user management and a concealed lock installation.
Specification summary
| Type | Battery powered |
| Function | RFID |
| Mode | Dedicated locker environments |
| Accessibility | No |
| Management | Management app, Master Programming Card |
| Auto unlock | Yes (countdown from 1-24 hours) |
| Lock mechanism | Fast release strike plate mechanism |
| Material | High-durability engineering plastic |
| Finishes | Invisibly mounted behind doors for clean aesthetic |
| Battery life | 10,000 cycles (2-3 years approx) |
| Battery type | 1 x 2CR5 6V Lithium battery (included) |
| Retrofittable | Yes |
| Manufacturer warranty | 3 years |
| Manufacturer | Xlock |
Lock features
Operation:
- Supports dedicated locker modes. Access via swipe card or smartphone app (BLE)
- 13.56MHz RFID Mifare swipe card or Bluetooth via smartphone app
- Auto relock after 5 seconds
Management:

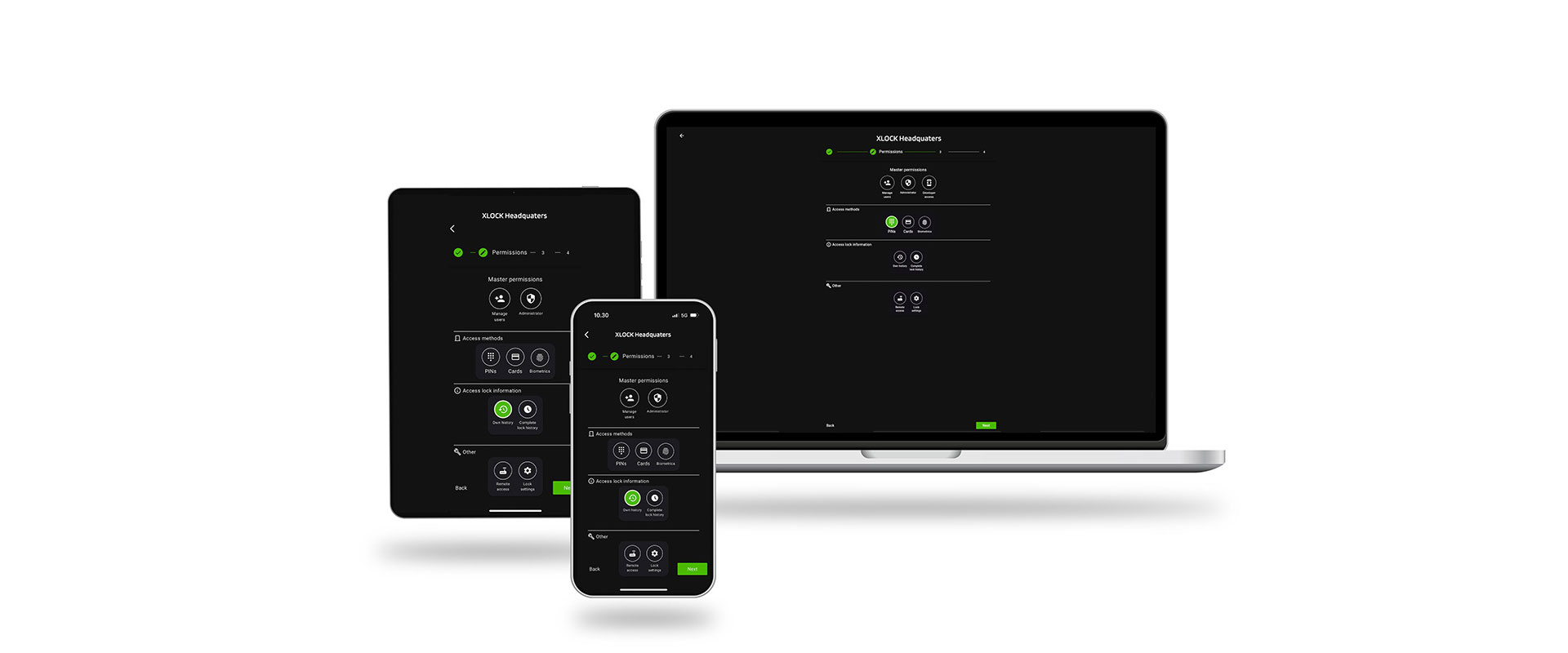

- Management app and Master Programming Card for system administration
- Management app for audit log
Durability:
- Battery life: 2-3 yrs, 10,000 cycles with 1 x 2CR5 6V Lithium battery (included)
- Manufacturer warranty: 3 years
Dimensions
| SKU | XL100 |
| Height | 105 |
| Width | 63 |
| Depth | 29 |
| Door thickness | 1-25 |
Retrofit & project integration
These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
