GL7p
RFID lock

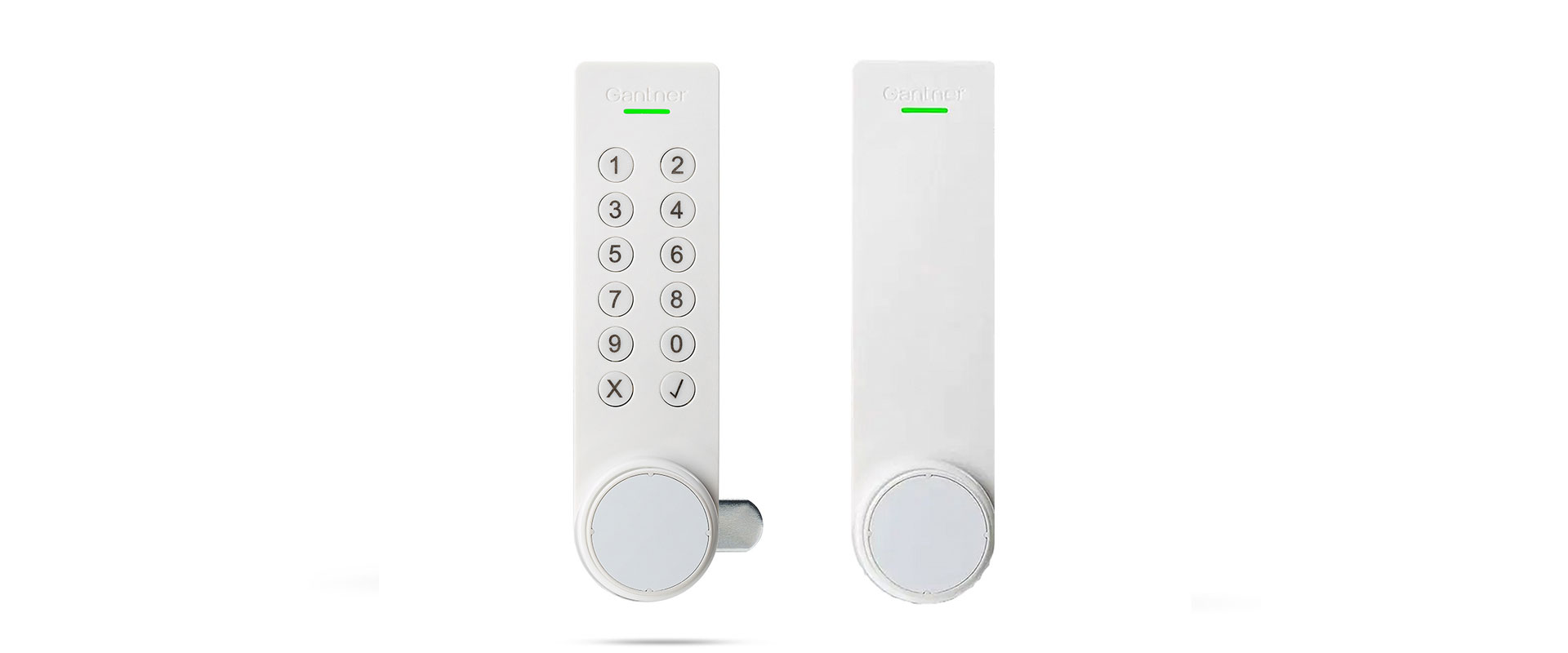

The Gantner GL7p is a battery-powered RFID locker lock designed for shared-use and dedicated-use locker environments. Commonly specified across workplace, education, end-of-trip and public-use facilities, it provides credential-based access with networked management capabilities, making it well suited to projects requiring integrated locker administration and scalable facility management.
Specification summary
| Type | Battery powered |
| Function | RFID or Code |
| Mode | Dedicated or shared-use locker environments |
| Accessibility | No |
| Fitting | Vertical & horizontal |
| Management | Desktop management system can be integrated with site for access control, management key override |
| Auto unlock | Yes |
| Lock mechanism | Mechanical lock |
| Material | Polycarbonate |
| Finishes | White and black |
| Water resistance | Not rated |
| Battery life | 36,500 cycles (up to 10 years) |
| Battery type | 1 x Lithium battery (included) |
| Retrofittable | Yes |
| Manufacturer warranty | 1 year |
| Manufacturer | Gantner |
Lock features
Operation:
- Programmable in shared or fixed mode
- User open/lock with PIN number, mobile credential or smart keycard – RFID (Mifare, HID, etc.)
- Push-button/knob displays status
- Can be programmed to open after 1-99 hrs
Management:
- Integrates with facility management systems for access control.
- Desktop management software
- Management key for override access control
- Access control by zones, levels or locker numbers
- Encrypted electronic lock communications
- Low battery indicator
Durability:
- Battery life: up to 10 yrs, 36,500 cycles with 1 Lithium battery
- Manufacturer warranty: 1 year
Dimensions
| SKU | GL7p |
| Height | 140 |
| Width | 38 |
| Depth | 44 |
| Door thickness | 1-30 |
Retrofit & project integration
These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
