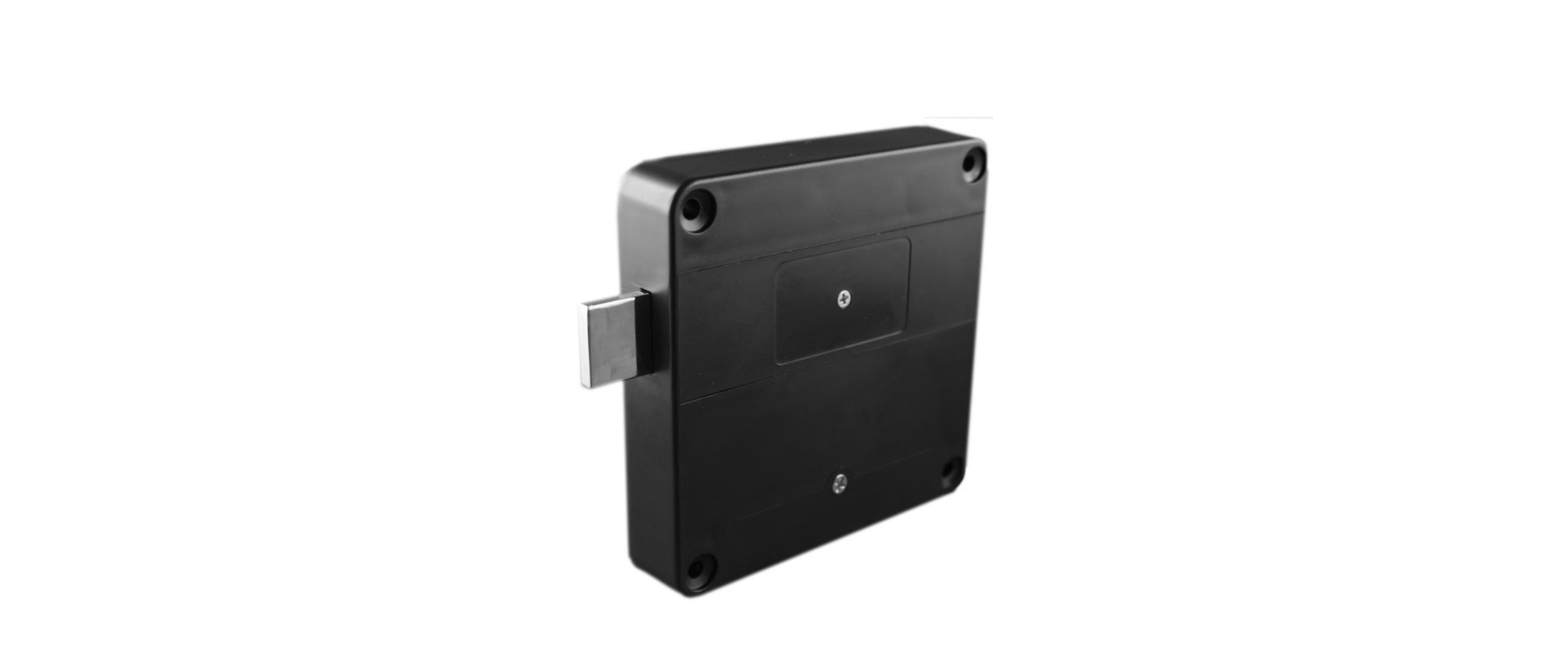

XLock 40
RFID lock
The XLOCK40 is a battery-powered RFID locker lock designed for shared-use locker environments. Invisibly mounted behind doors for clean aesthetic it is commonly specified across workplace, education, end-of-trip and public-use facilities. it supports a broad range of RFID credential technologies making it well suited to projects requiring streamlined user turnover within predominantly shared-use locker environments.
Specification summary
| Type | Battery powered |
| Function | RFID |
| Mode | Shared locker environments |
| Accessibility | No |
| Management | Management and programming cards |
| Auto unlock | Yes (countdown from 1-24 hours) |
| Lock mechanism | Sliding bolt locking mechanism |
| Material | High-durability engineering plastic |
| Finishes | Invisibly mounted behind doors for clean aesthetic |
| Battery life | 10,000 cycles (2-3 years approx) |
| Battery type | 1 x CR123 3V Lithium battery (included) |
| Retrofittable | Yes |
| Manufacturer warranty | 3 years |
| Manufacturer | Xlock |
Lock features
Operation:
- Supports allocated locker and temporary free-locker modes
- 13.56MHz contactless RFID technology
- Tap existing RFID access cards or alternative contactless technologies (excl. phones)
- Specify RFID type: RFID – Mifare Classic, Mifare Desfire, or HID Proxy
- LED locker status indicator
Management:
- Management Programming Card
- Management Card and Master Card for system administration
- Low battery warning beep. Locker disengages once battery has been exhausted
Durability:
- Battery life: 2-3 yrs, 10,000 cycles with 1 x CR123 3V Lithium battery (included)
- Manufacturer warranty: 3 years
Dimensions
| SKU | XL40 |
| Height | 110 |
| Width | 110 |
| Depth | 21 |
| Door thickness | 1-25 |
Retrofit & project integration
These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
