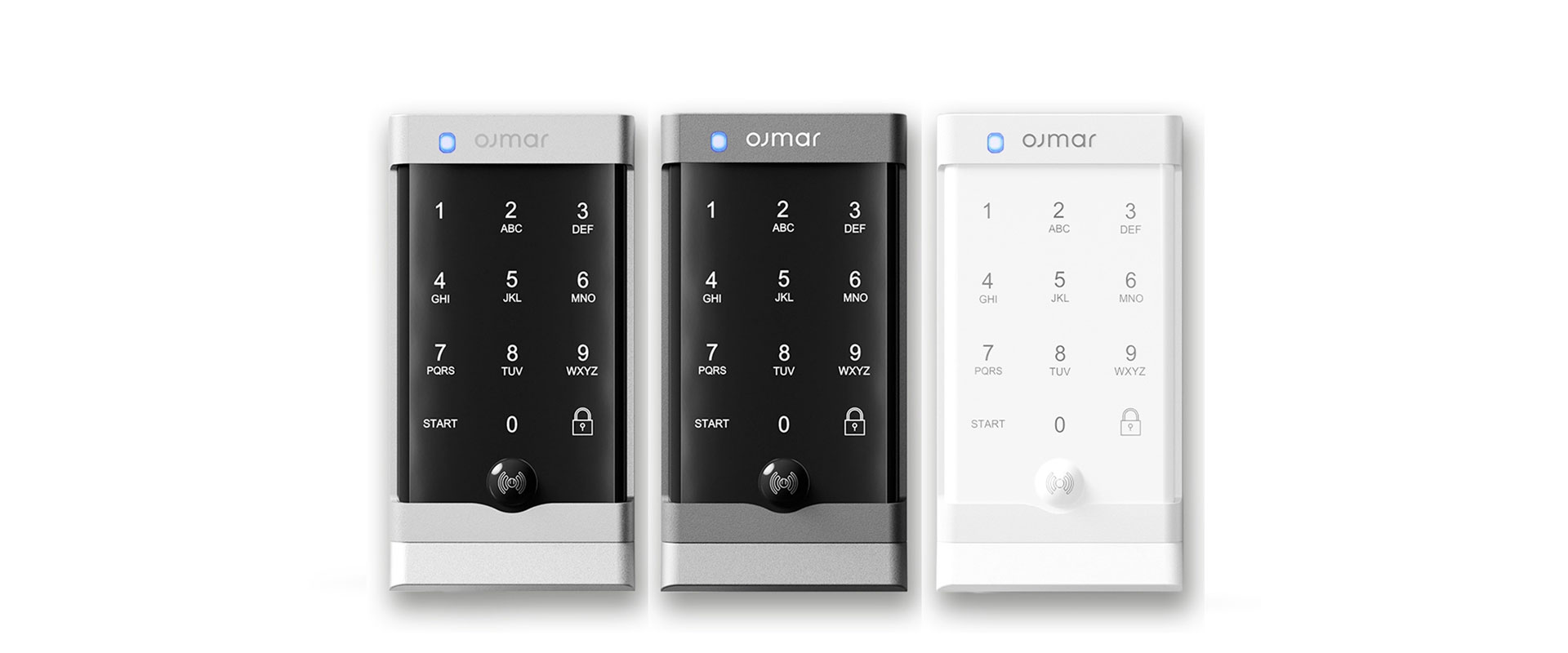

OCS Smart
Bluetooth lock
The OJMAR OCS30 Pro is a battery-powered Bluetooth locker lock designed for shared-use and dedicated-use locker environments. Commonly specified across workplace, education, end-of-trip and public-use facilities, it supports keypad, mobile app and RFID credential access, making it well suited to projects requiring flexible user access, streamlined locker management and integrated facility operation.
Specification summary
| Type | Battery powered |
| Function | Code & Bluetooth |
| Mode | Dedicated or shared-use locker environments |
| Accessibility | Integrated handle for accessibility |
| Fitting | Left & right-handed |
| Management | Desktop & mobile management, master override key for emergency access |
| Auto lock | Yes (countdown from 1-99 hours) |
| Lock mechanism | Dead bolt |
| Material | Polycarbonate |
| Finishes | Silver, graphite or white finishes |
| Water resistance | IP55-rated for wet and dry areas |
| Battery life | 180,000 cycles (up to 5 years) |
| Battery type | 4 x AA batteries (included) |
| Retrofittable | Yes |
| Manufacturer warranty | 2 years |
| Manufacturer | Ojmar |
Lock features
Operation:
- Code & Bluetooth (smartphone) access
- Programmable in shared or fixed mode
- 4, 5 or 6-digit PIN user code capability
- Touch-sensitive keypad with LED status indicators
- Automatic unlock timer (programmable from 1–99 hours)
- Integrated handle for accessibility
Management:
- Mobile management app for access and settings control
- SDK available for facility app integration
- Electronic master key override access
- Visual low-battery LED indicator
- Cloud-linked management software for audit trails and configuration tracking
Durability:
- IP55 rated for dust & water resistance
- IK09 for high-impact protection
- Battery life: 180,000 cycles (up to 5 years) with 4 AA batteries
- Manufacturer warranty: 2 years
Dimensions
| SKU | OCS-30 |
| Height | 119 |
| Width | 62 |
| Depth | 8 |
| Door thickness | 1-24 |
Retrofit & project integration
These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
