Aspire

Digital lock

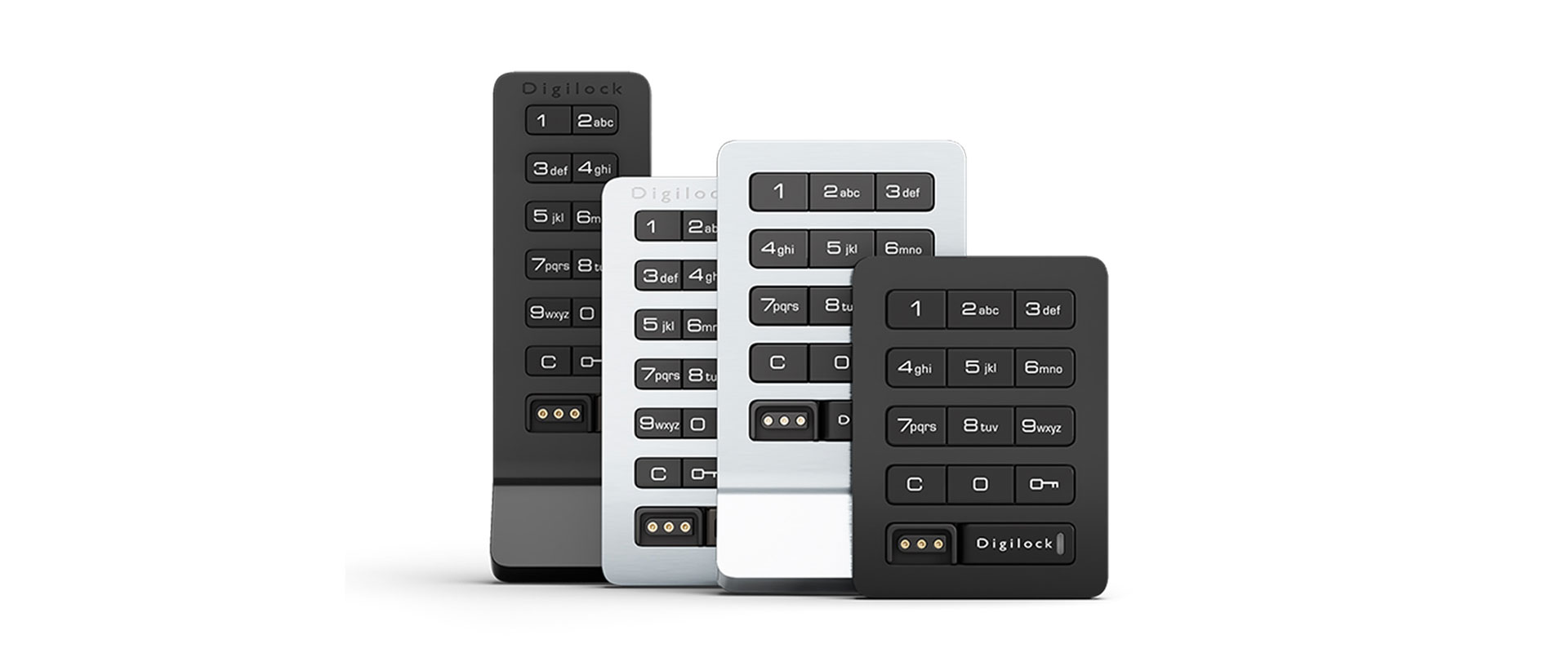

The Digilock Aspire Keypad is a battery-powered digital locker lock designed for shared-use and dedicated-use locker environments. Commonly specified across workplace, education, end-of-trip and public-use facilities, it provides PIN code access with a refined, low-profile design, making it well suited to projects requiring flexible user access, streamlined locker management and integrated hardware solutions. available in both wide (standard) and narrow body configurations to suit varying locker designs and retrofit requirements.

Specification summary

Lock features

Operation:

• Programmable in shared or fixed mode
• Shared use mode – users select a 4–7-digit code for each locker allocation
• Fixed use mode – assigned users retain a 4–7-digit access code
• Programmable auto-unlock timer (1–99 hours)
• Visual and audible lock status indicators
• Deadlatch or deadbolt lock mechanism options
• Option of Cable or Pin for rear unit connection

Management:

• Assign up to 6 manager credentials per system
• Supports multiple authorised user credentials per lock
• Management override access
• Electronic management keys provide emergency power and override access
• Advanced Tablet Management System upgrade available

Durability:

• IP55-rated for dust and water resistance
• Battery life: 3-5 yrs, 180,000 cycles with 4 AA batteries
• Manufacturer warranty: 2 years

Dimensions

Retrofit & project integration

These lock systems can be specified across new locker projects or separately retrofit locker upgrades. Minimum order quantities and lead times
apply.
